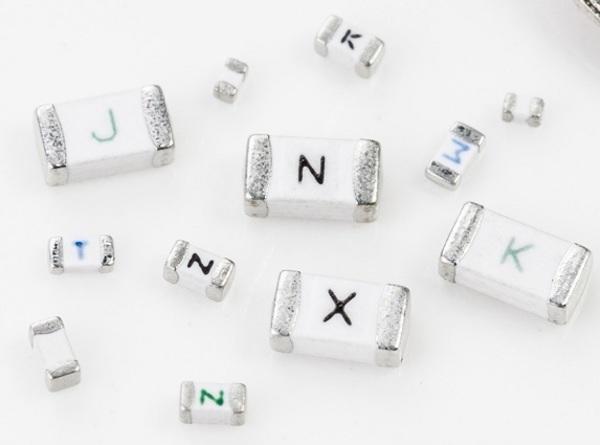

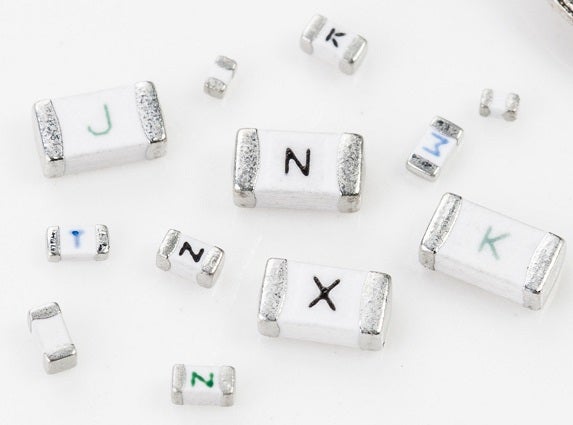

SolidMatrix® SMD Chip Fuses

AEM is known in the electronic fuse field for excellent quality and consistent performance. Our SolidMatrix® chip fuse, developed and manufactured for commercial purposes with multiple proprietary patented technologies, have optimum performance and range from 1206 to 0402 in terms of dimension specifications.

Cross Reference

Features:

  • Monolithic glass ceramic body with silver fusing element
  • Silver termination with nickel and pure-tin solder plating (lead-free), providing excellent solderability
  • Compatible with both wave and reflow soldering processes
  • Operating temperature range: -55°C - 150°C
  • Tape & reel packaging
RoHS Compliance Statement (PDF) REQUEST
INFORMATION

Request a Quote

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
F1206VH2500TM SolidMatrix® VH Series Voltage High 1206 2.50A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH3000TM SolidMatrix® VH Series Voltage High 1206 3.00A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH3500TM SolidMatrix® VH Series Voltage High 1206 3.50A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH4000TM SolidMatrix® VH Series Voltage High 1206 4.00A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH4500TM SolidMatrix® VH Series Voltage High 1206 4.50A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH5000TM SolidMatrix® VH Series Voltage High 1206 5.00A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH6000TM SolidMatrix® VH Series Voltage High 1206 6.00A 48VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH7000TM SolidMatrix® VH Series Voltage High 1206 7.00A 48VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH8000TM SolidMatrix® VH Series Voltage High 1206 8.00A 48VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206HC10A0TM SolidMatrix® HC Series High Current 1206 10A 35VDC 150A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC12A0TM SolidMatrix® HC Series High Current 1206 12A 35VDC 150A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC15A0TM SolidMatrix® HC Series High Current 1206 15A 35VDC 150A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC20A0TM SolidMatrix® HC Series High Current 1206 20A 35VDC 150A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC25A0TM SolidMatrix® HC Series High Current 1206 25A 35VDC 200A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC30A0TM SolidMatrix® HC Series High Current 1206 30A 35VDC 200A@35VDC/300A@26VDC 3000 3000 Active Tape and Reel Y Check
F1206HC40A0TM SolidMatrix® HC Series High Current 1206 40A 35VDC 200A@35VDC/300A@26VDC 3000 3000 Active Tape and Reel Y Check
F0402FA0500V024T SolidMatrix® FA Series Fast Acting 0402 0.50A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA0750V024T SolidMatrix® FA Series Fast Acting 0402 0.75A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA1000V024T SolidMatrix® FA Series Fast Acting 0402 1.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA1500V024T SolidMatrix® FA Series Fast Acting 0402 1.50A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA2000V024T SolidMatrix® FA Series Fast Acting 0402 2.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA3000V024T SolidMatrix® FA Series Fast Acting 0402 3.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA4000V024T SolidMatrix® FA Series Fast Acting 0402 4.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA5000V024T SolidMatrix® FA Series Fast Acting 0402 5.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA6000V024T SolidMatrix® FA Series Fast Acting 0402 6.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA7000V024T SolidMatrix® FA Series Fast Acting 0402 7.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA8000V024T SolidMatrix® FA Series Fast Acting 0402 8.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0603FA0500V063TM SolidMatrix® FA Series Fast Acting 0603 0.50A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA0750V063TM SolidMatrix® FA Series Fast Acting 0603 0.75A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA1000V063TM SolidMatrix® FA Series Fast Acting 0603 1.00A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA1500V063TM SolidMatrix® FA Series Fast Acting 0603 1.50A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA2000V032TM SolidMatrix® FA Series Fast Acting 0603 2.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA2500V032TM SolidMatrix® FA Series Fast Acting 0603 2.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA3000V032TM SolidMatrix® FA Series Fast Acting 0603 3.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA3500V032TM SolidMatrix® FA Series Fast Acting 0603 3.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA4000V032TM SolidMatrix® FA Series Fast Acting 0603 4.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA5000V032TM SolidMatrix® FA Series Fast Acting 0603 5.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA6000V024TM SolidMatrix® FA Series Fast Acting 0603 6.00A 24VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F1206FA0500V063TM SolidMatrix® FA Series Fast Acting 1206 0.50A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA0750V063TM SolidMatrix® FA Series Fast Acting 1206 0.75A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1000V063TM SolidMatrix® FA Series Fast Acting 1206 1.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1500V063TM SolidMatrix® FA Series Fast Acting 1206 1.50A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1750V063TM SolidMatrix® FA Series Fast Acting 1206 1.75A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA2000V063TM SolidMatrix® FA Series Fast Acting 1206 2.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA2500V032TM SolidMatrix® FA Series Fast Acting 1206 2.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA3000V032TM SolidMatrix® FA Series Fast Acting 1206 3.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA4000V032TM SolidMatrix® FA Series Fast Acting 1206 4.00A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA5000V032TM SolidMatrix® FA Series Fast Acting 1206 5.00A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA6000V032TM SolidMatrix® FA Series Fast Acting 1206 6.00A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA7000V032TM SolidMatrix® FA Series Fast Acting 1206 7.0A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA8000V032TM SolidMatrix® FA Series Fast Acting 1206 8.00A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F0603SB1000V032TM SolidMatrix® SB Series Slow Blow 0603 1.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB1500V032TM SolidMatrix® SB Series Slow Blow 0603 1.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB2000V032TM SolidMatrix® SB Series Slow Blow 0603 2.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB2500V032TM SolidMatrix® SB Series Slow Blow 0603 2.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB3000V032TM SolidMatrix® SB Series Slow Blow 0603 3.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB3500V032TM SolidMatrix® SB Series Slow Blow 0603 3.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB4000V032TM SolidMatrix® SB Series Slow Blow 0603 4.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB4500V032TM SolidMatrix® SB Series Slow Blow 0603 4.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB5000V032TM SolidMatrix® SB Series Slow Blow 0603 5.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB6000V032TM SolidMatrix® SB Series Slow Blow 0603 6.00A 32VDC 80A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB7000V032TM SolidMatrix® SB Series Slow Blow 0603 7.00A 32VDC 80A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603SB8000V032TM SolidMatrix® SB Series Slow Blow 0603 8.00A 32VDC 80A at rated voltage 4000 4000 Active Tape and Reel Y Check
F1206SB1000V063TM SolidMatrix® SB Series Slow Blow 1206 1.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB1250V063TM SolidMatrix® SB Series Slow Blow 1206 1.25A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB1500V063TM SolidMatrix® SB Series Slow Blow 1206 1.50A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB2000V063TM SolidMatrix® SB Series Slow Blow 1206 2.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB2500V032TM SolidMatrix® SB Series Slow Blow 1206 2.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB3000V032TM SolidMatrix® SB Series Slow Blow 1206 3.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB3500V032TM SolidMatrix® SB Series Slow Blow 1206 3.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB4000V032TM SolidMatrix® SB Series Slow Blow 1206 4.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB4500V032TM SolidMatrix® SB Series Slow Blow 1206 4.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB5000V032TM SolidMatrix® SB Series Slow Blow 1206 5.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB5500V024TM SolidMatrix® SB Series Slow Blow 1206 5.50A 24VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB6000V024TM SolidMatrix® SB Series Slow Blow 1206 6.00A 24VDC 60A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB7000V024TM SolidMatrix® SB Series Slow Blow 1206 7.00A 24VDC 60A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206SB8000V024TM SolidMatrix® SB Series Slow Blow 1206 8.00A 24VDC 60A at rated voltage 3000 3000 Active Tape and Reel Y Check
F0603HI1000V032TM SolidMatrix® HI Series High Inrush 0603 1.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI1500V032TM SolidMatrix® HI Series High Inrush 0603 1.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI2000V032TM SolidMatrix® HI Series High Inrush 0603 2.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI2500V032TM SolidMatrix® HI Series High Inrush 0603 2.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI3000V032TM SolidMatrix® HI Series High Inrush 0603 3.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI3500V032TM SolidMatrix® HI Series High Inrush 0603 3.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI4000V032TM SolidMatrix® HI Series High Inrush 0603 4.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI4500V032TM SolidMatrix® HI Series High Inrush 0603 4.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI5000V032TM SolidMatrix® HI Series High Inrush 0603 5.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI6000V032TM SolidMatrix® HI Series High Inrush 0603 6.00A 32VDC 70A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI7000V032TM SolidMatrix® HI Series High Inrush 0603 7.00A 32VDC 80A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI8000V032TM SolidMatrix® HI Series High Inrush 0603 8.00A 32VDC 80A at rated voltage 4000 4000 Active Tape and Reel Y Check
F1206HI0500V065TM SolidMatrix® HI Series High Inrush 1206 0.50A 65VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI0750V065TM SolidMatrix® HI Series High Inrush 1206 0.75A 65VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI1000V063TM SolidMatrix® HI Series High Inrush 1206 1.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI1500V063TM SolidMatrix® HI Series High Inrush 1206 1.50A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI2000V063TM SolidMatrix® HI Series High Inrush 1206 2.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI2500V032TM SolidMatrix® HI Series High Inrush 1206 2.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI3000V032TM SolidMatrix® HI Series High Inrush 1206 3.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI3500V032TM SolidMatrix® HI Series High Inrush 1206 3.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI4000V032TM SolidMatrix® HI Series High Inrush 1206 4.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI4500V032TM SolidMatrix® HI Series High Inrush 1206 4.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI5000V032TM SolidMatrix® HI Series High Inrush 1206 5.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI6000V024TM SolidMatrix® HI Series High Inrush 1206 6.00A 24VDC 80A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI7000V024TM SolidMatrix® HI Series High Inrush 1206 7.00A 24VDC 80A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI8000V024TM SolidMatrix® HI Series High Inrush 1206 8.00A 24VDC 80A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HA10V024TM SolidMatrix® HA Series High Current 1206 10.0A 24VDC 100A@24Vdc 3000 3000 Active Tape and Reel Y Check
F1206HA12V024TM SolidMatrix® HA Series High Current 1206 12.0A 24VDC 100A@24Vdc 3000 3000 Active Tape and Reel Y Check
F1206HA15V024TM SolidMatrix® HA Series High Current 1206 15.0A 24VDC 100A@24Vdc 3000 3000 Active Tape and Reel Y Check
F1206HA20V024TM SolidMatrix® HA Series High Current 1206 20.0A 24VDC 100A@24Vdc 3000 3000 Active Tape and Reel Y Check
F1206HB10V024TM SolidMatrix® HB Series High Current 1206 10.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB12V024TM SolidMatrix® HB Series High Current 1206 12.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB15V024TM SolidMatrix® HB Series High Current 1206 15.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB20V024TM SolidMatrix® HB Series High Current 1206 20.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB25V024TM SolidMatrix® HB Series High Current 1206 25.0A 24VDC 250A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB30V024TM SolidMatrix® HB Series High Current 1206 30.0A 24VDC 300A at rated voltage 3000 3000 Active Tape and Reel Y Check
F0603FF0500V032TM SolidMatrix® FF Series Very Fast Acting 0603 0.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF0750V032TM SolidMatrix® FF Series Very Fast Acting 0603 0.75A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF1000V032TM SolidMatrix® FF Series Very Fast Acting 0603 1.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF1250V032TM SolidMatrix® FF Series Very Fast Acting 0603 1.25A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF1500V032TM SolidMatrix® FF Series Very Fast Acting 0603 1.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF1750V032TM SolidMatrix® FF Series Very Fast Acting 0603 1.75A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF2000V032TM SolidMatrix® FF Series Very Fast Acting 0603 2.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF2500V032TM SolidMatrix® FF Series Very Fast Acting 0603 2.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF3000V032TM SolidMatrix® FF Series Very Fast Acting 0603 3.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF3500V032TM SolidMatrix® FF Series Very Fast Acting 0603 3.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF4000V032TM SolidMatrix® FF Series Very Fast Acting 0603 4.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF4500V032TM SolidMatrix® FF Series Very Fast Acting 0603 4.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FF5000V032TM SolidMatrix® FF Series Very Fast Acting 0603 5.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
