Home » Products » SolidMatrix® SMD Chip Fuse » SolidMatrix® VH Series
Series: SolidMatrix® SMD Chip Fuses

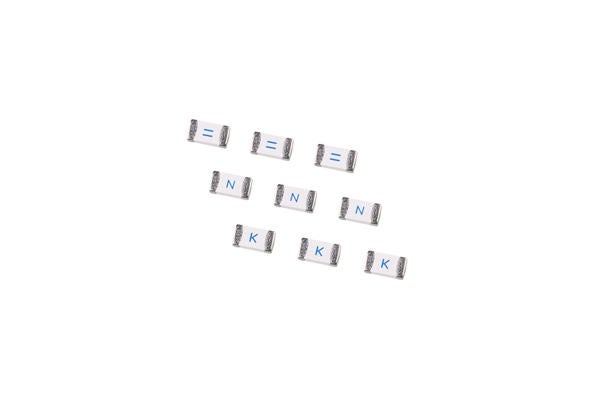

SolidMatrix® VH Series

Features:

  • Monolithic glass ceramic body with silver fusing element
  • Silver termination with nickel and pure-tin solder plating (lead-free), providing excellent solderability
  • Compatible with both wave and reflow soldering processes
  • Operating temperature range: -55°C - 125°C
  • Tape & reel packaging

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
F1206VH2500TM SolidMatrix® VH Series Voltage High 1206 2.50A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH3000TM SolidMatrix® VH Series Voltage High 1206 3.00A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH3500TM SolidMatrix® VH Series Voltage High 1206 3.50A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH4000TM SolidMatrix® VH Series Voltage High 1206 4.00A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH4500TM SolidMatrix® VH Series Voltage High 1206 4.50A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH5000TM SolidMatrix® VH Series Voltage High 1206 5.00A 65VDC 60A@ 65VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH6000TM SolidMatrix® VH Series Voltage High 1206 6.00A 48VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH7000TM SolidMatrix® VH Series Voltage High 1206 7.00A 48VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
F1206VH8000TM SolidMatrix® VH Series Voltage High 1206 8.00A 48VDC 80A@48VDC 100A@32VDC 3000 3000 Active Tape and Reel Y Check
