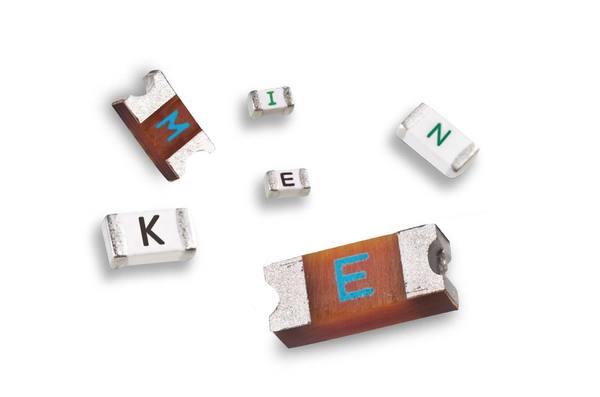

Automotive SMD Fuses

AEM Components’ AEC-Q200 Rev.E qualified and ISO/IATF 16949 certified fuses are setting a new standard for reliable performance in demanding automotive applications. Choose from AirMatrix wire-in-air fuses and SolidMatrix solid body fuses for optimum performance under the hood or in the cabin.

AirMatrix® Platform
QA2410/QA1206

Unique contruction enhances reliability
Hermetically sealed wire-in-air structure
Highly-reliable end-cap construction
Highest current rating in the industry, up to 20A, 250V
Consistent electrical performance

SolidMatrix® Platform
QF1206/QF0603

Stable at high temperature and high stress
Superior thermal and mechanical performance
Operating temperature ranges -55 to 150°C
Unique co-fired monolithic structure
High-reliability anti-sulfur construction

CMF Platform
QM2822H

Current ratings from 40A to 125A
Application specific voltage ratings from 48Vdc to 125Vdc
Standardized footprint / miniaturized package size for all values
Solid robust structure using singular fuse link / terminal
Solderless, RoHS compliant / Halogen free construction
Low DC resistance (DCR) – to minimize excessive power loss & optimize thermal management
Automotive grade version (QM2822H) qualified per AEC-Q200
Higher current ratings from 150A and 200A are available per request

REQUEST
INFORMATION

YouTube video featuring our fuse: "How To: Protect Against Catastrophic Shorts in EVs"

Electrical Characteristics

Supplier Part Number	Part Series	Product Type	Size	Current Rating	Voltage Rating	Interrupting Rating	Min Order Qty	Standard Package	Status	Package Type	RoHS	Stock Check
QF0603GA500T	Automotive QF G-Series	Automotive Grade	0603	0.50A	65VDC	50A @ 65VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603GA750T	Automotive QF G-Series	Automotive Grade	0603	0.75A	65VDC	50A @ 65VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G1A00T	Automotive QF G-Series	Automotive Grade	0603	1.00A	65VDC	50A @ 65VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G1A25T	Automotive QF G-Series	Automotive Grade	0603	1.25A	65VDC	50A @ 65VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G1A50T	Automotive QF G-Series	Automotive Grade	0603	1.50A	65VDC	50A @ 65VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G1A75T	Automotive QF G-Series	Automotive Grade	0603	1.75A	65VDC	50A @ 65VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G2A00T	Automotive QF G-Series	Automotive Grade	0603	2.00A	35VDC	50A @ 35VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G2A50T	Automotive QF G-Series	Automotive Grade	0603	2.50A	35VDC	50A @ 35VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G3A00T	Automotive QF G-Series	Automotive Grade	0603	3.00A	35VDC	50A @ 35VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G3A50T	Automotive QF G-Series	Automotive Grade	0603	3.50A	35VDC	50A @ 35VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G4A00T	Automotive QF G-Series	Automotive Grade	0603	4.00A	35VDC	50A @ 35VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G5A00T	Automotive QF G-Series	Automotive Grade	0603	5.00A	35VDC	50A @ 35VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G6A00T	Automotive QF G-Series	Automotive Grade	0603	6.00A	35VDC	50A @ 35VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G7A00T	Automotive QF G-Series	Automotive Grade	0603	7.00A	24VDC	80A @ 24VDC	4000	4000	Active	Tape & Reel	Y	Check
QF0603G8A00T	Automotive QF G-Series	Automotive Grade	0603	8.00A	24VDC	80A @ 24VDC	4000	4000	Active	Tape & Reel	Y	Check
QF1206GA500T	Automotive QF G-Series	Automotive Grade	1206	0.50A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206GA750T	Automotive QF G-Series	Automotive Grade	1206	0.75A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G1A00T	Automotive QF G-Series	Automotive Grade	1206	1.00A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G1A50T	Automotive QF G-Series	Automotive Grade	1206	1.50A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G2A00T	Automotive QF G-Series	Automotive Grade	1206	2.00A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G2A50T	Automotive QF G-Series	Automotive Grade	1206	2.50A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G3A00T	Automotive QF G-Series	Automotive Grade	1206	3.00A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G3A50T	Automotive QF G-Series	Automotive Grade	1206	3.50A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G4A00T	Automotive QF G-Series	Automotive Grade	1206	4.00A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G4A50T	Automotive QF G-Series	Automotive Grade	1206	4.50A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF1206G5A00T	Automotive QF G-Series	Automotive Grade	1206	5.00A	65VDC	50A @ 65VDC	3000	3000	Active	Tape & Reel	Y	Check
QF0603F1A00T	Automotive QF F-Series	Automotive Grade	0603	1.00A	63VDC	35A @ 63VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603F1A50T	Automotive QF F-Series	Automotive Grade	0603	1.50A	63VDC	35A @ 63VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603F2A00T	Automotive QF F-Series	Automotive Grade	0603	2.00A	32VDC	35A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603F2A50T	Automotive QF F-Series	Automotive Grade	0603	2.50A	32VDC	35A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603F3A00T	Automotive QF F-Series	Automotive Grade	0603	3.00A	32VDC	35A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603F3A50T	Automotive QF F-Series	Automotive Grade	0603	3.50A	32VDC	35A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603F4A00T	Automotive QF F-Series	Automotive Grade	0603	4.00A	32VDC	35A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603F5A00T	Automotive QF F-Series	Automotive Grade	0603	5.00A	32VDC	35A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603F6A00T	Automotive QF F-Series	Automotive Grade	0603	6.00A	24VDC	35A @ 24VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF1206FA500T	Automotive QF F-Series	Automotive Grade	1206	0.50A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206FA750T	Automotive QF F-Series	Automotive Grade	1206	0.75A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F1A00T	Automotive QF F-Series	Automotive Grade	1206	1.00A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F1A50T	Automotive QF F-Series	Automotive Grade	1206	1.50A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F1A75T	Automotive QF F-Series	Automotive Grade	1206	1.75A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F2A00T	Automotive QF F-Series	Automotive Grade	1206	2.00A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F2A50T	Automotive QF F-Series	Automotive Grade	1206	2.50A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F3A00T	Automotive QF F-Series	Automotive Grade	1206	3.00A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F4A00T	Automotive QF F-Series	Automotive Grade	1206	4.00A	32VDC	45A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F5A00T	Automotive QF F-Series	Automotive Grade	1206	5.00A	32VDC	45A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F6A00T	Automotive QF F-Series	Automotive Grade	1206	6.00A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F7A00T	Automotive QF F-Series	Automotive Grade	1206	7.00A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206F8A00T	Automotive QF F-Series	Automotive Grade	1206	8.00A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF0603H1A00T	Automotive QF H-Series	Automotive Grade	0603	1.00A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603H1A50T	Automotive QF H-Series	Automotive Grade	0603	1.50A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603H2A00T	Automotive QF H-Series	Automotive Grade	0603	2.00A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603H2A50T	Automotive QF H-Series	Automotive Grade	0603	2.50A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603H3A00T	Automotive QF H-Series	Automotive Grade	0603	3.00A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603H3A50T	Automotive QF H-Series	Automotive Grade	0603	3.50A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603H4A00T	Automotive QF H-Series	Automotive Grade	0603	4.00A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603H4A50T	Automotive QF H-Series	Automotive Grade	0603	4.50A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF0603H5A00T	Automotive QF H-Series	Automotive Grade	0603	5.00A	32VDC	50A @ 32VDC	4000	4,000	Active	Tape & Reel	Y	Check
QF1206HA500T	Automotive QF H-Series	Automotive Grade	1206	0.50A	65VDC	50A @ 65VDC	3500	3500	Active	Tape & Reel	Y	Check
QF1206HA750T	Automotive QF H-Series	Automotive Grade	1206	0.75A	65VDC	50A @ 65VDC	3500	3500	Active	Tape & Reel	Y	Check
QF1206H1A00T	Automotive QF H-Series	Automotive Grade	1206	1.00A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H1A50T	Automotive QF H-Series	Automotive Grade	1206	1.50A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H2A00T	Automotive QF H-Series	Automotive Grade	1206	2.00A	63VDC	50A @ 63VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H2A50T	Automotive QF H-Series	Automotive Grade	1206	2.50A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H3A00T	Automotive QF H-Series	Automotive Grade	1206	3.00A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H3A50T	Automotive QF H-Series	Automotive Grade	1206	3.50A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H4A00T	Automotive QF H-Series	Automotive Grade	1206	4.00A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H4A50T	Automotive QF H-Series	Automotive Grade	1206	4.50A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H5A00T	Automotive QF H-Series	Automotive Grade	1206	5.00A	32VDC	50A @ 32VDC	3000	3,000	Active	Tape & Reel	Y	Check
QF1206H6A00T	Automotive QF H-Series	Automotive Grade	1206	6.00A	24VDC	80A @ 24VDC	3000	3,000	Active	Tape & Reel	Y	Check
QM2822H100AT	Automotive QM H-Series	Automotive Grade	2822	100A	75VDC	1000A @ 75VDC / 1500A @ 48VDC	1000	1000	Active	Tape & Reel	Y	Check
QM2822H125AT	Automotive QM H-Series	Automotive Grade	2822	125A	75VDC	1000A @ 75VDC / 1500A @ 48VDC	1000	1000	Active	Tape & Reel	Y	Check
QM2822H40A0T	Automotive QM H-Series	Automotive Grade	2822	40A	125VDC	300A @ 125VDC / 1000A @ 75VDC / 1500A @ 48VDC	1000	1000	Active	Tape & Reel	Y	Check
QM2822H50A0T	Automotive QM H-Series	Automotive Grade	2822	50A	125VDC	300A @ 125VDC / 1000A @ 75VDC / 1500A @ 48VDC	1000	1000	Active	Tape & Reel	Y	Check
QM2822H60A0T	Automotive QM H-Series	Automotive Grade	2822	60A	75VDC	1000A @ 75VDC / 1500A @ 48VDC	1000	1000	Active	Tape & Reel	Y	Check
QM2822H70A0T	Automotive QM H-Series	Automotive Grade	2822	70A	75VDC	1000A @ 75VDC / 1500A @ 48VDC	1000	1000	Active	Tape & Reel	Y	Check
QM2822H80A0T	Automotive QM H-Series	Automotive Grade	2822	80A	75VDC	1000A @ 75VDC / 1500A @ 48VDC	1000	1000	Active	Tape & Reel	Y	Check
QM2822H90A0T	Automotive QM H-Series	Automotive Grade	2822	90A	75VDC	1000A @ 75VDC / 1500A @ 48VDC	1000	1000	Active	Tape & Reel	Y	Check
QM2840H150AT	Automotive QM H-Series	Automotive Grade	2840	150A	75VDC	1,500A @ 75VDC	600	600	Active	Tape & Reel	Y	Check
QM2840H200AT	Automotive QM H-Series	Automotive Grade	2840	200A	75VDC	1,500A @ 75VDC	600	600	Active	Tape & Reel	Y	Check
QA1206F1A00T	Automotive QA F-Series	Automotive Grade	1206	1.00A	125VDC	50 A @ 125VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F1A50T	Automotive QA F-Series	Automotive Grade	1206	1.50A	125VDC	50 A @ 125VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F1A60T	Automotive QA F-Series	Automotive Grade	1206	1.60A	125VDC	50 A @ 125VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F10A0T	Automotive QA F-Series	Automotive Grade	1206	10.0A	32VDC	50 A @ 32VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F12A0T	Automotive QA F-Series	Automotive Grade	1206	12.0A	32VDC	50 A @ 32VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F15A0T	Automotive QA F-Series	Automotive Grade	1206	15.0A	32VDC	50 A @ 32VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F2A00T	Automotive QA F-Series	Automotive Grade	1206	2.00A	125VDC	50 A @ 125VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F2A50T	Automotive QA F-Series	Automotive Grade	1206	2.50A	65VDC	50 A @ 65VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F3A00T	Automotive QA F-Series	Automotive Grade	1206	3.00A	65VDC	50 A @ 65VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F3A15T	Automotive QA F-Series	Automotive Grade	1206	3.15A	65VDC	50 A @ 65VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F3A50T	Automotive QA F-Series	Automotive Grade	1206	3.50A	65VDC	50 A @ 65VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F4A00T	Automotive QA F-Series	Automotive Grade	1206	4.00A	65VDC	50 A @ 65VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F5A00T	Automotive QA F-Series	Automotive Grade	1206	5.00A	32VDC	50 A @ 32VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F6A30T	Automotive QA F-Series	Automotive Grade	1206	6.30A	32VDC	50 A @ 32VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F7A00T	Automotive QA F-Series	Automotive Grade	1206	7.00A	32VDC	50 A @ 32VDC	3500	3500	Active	Tape & Reel	Y	Check
QA1206F8A00T	Automotive QA F-Series	Automotive Grade	1206	8.00A	32VDC	50 A @ 32VDC	3500	3500	Active	Tape & Reel	Y	Check
QA2410F1A00T	Automotive QA F-Series	Automotive Grade	2410	1.00A	250VDC	100A @ 250VDC 300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F1A25T	Automotive QA F-Series	Automotive Grade	2410	1.25A	250VDC	100A @ 250VDC 300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F1A50T	Automotive QA F-Series	Automotive Grade	2410	1.50A	250VDC	100A @ 250VDC 300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F10A0T	Automotive QA F-Series	Automotive Grade	2410	10.0A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F12A0T	Automotive QA F-Series	Automotive Grade	2410	12.0A	65VDC	50A @ 65VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F15A0T	Automotive QA F-Series	Automotive Grade	2410	15.0A	65VDC	50A @ 65VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F2A00T	Automotive QA F-Series	Automotive Grade	2410	2.00A	250VDC	100A @ 250VDC 300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F2A50T	Automotive QA F-Series	Automotive Grade	2410	2.50A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F20A0T	Automotive QA F-Series	Automotive Grade	2410	20.0A	65VDC	100A @ 65VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F3A00T	Automotive QA F-Series	Automotive Grade	2410	3.00A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F3A15T	Automotive QA F-Series	Automotive Grade	2410	3.15A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F3A50T	Automotive QA F-Series	Automotive Grade	2410	3.50A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F4A00T	Automotive QA F-Series	Automotive Grade	2410	4.00A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F5A00T	Automotive QA F-Series	Automotive Grade	2410	5.00A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F6A30T	Automotive QA F-Series	Automotive Grade	2410	6.30A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F7A00T	Automotive QA F-Series	Automotive Grade	2410	7.00A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
QA2410F8A00T	Automotive QA F-Series	Automotive Grade	2410	8.00A	125VDC	50A @ 125VDC300A @ 32VDC	2000	2000	Active	Tape & Reel	Y	Check
