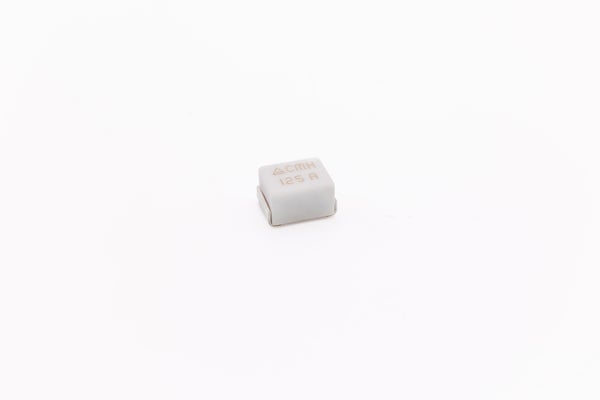

CMF HIGH POWER SURFACE MOUNT FUSE

The CMF high power surface mount fuses build on AEM advanced manufacturing technology. The solid, robust structure assures reliable operation in environments where temperature cycling and high mechanical vibration are present. The devices singular fuse link/terminal construction eliminates problems that occur with traditional ceramic tube interconnection techniques.

CMF High Power Fuse Features:

  • Thermal simulation on critical fuse element design with optimized & safe fuse performances
  • Standardized 2822 footprint / miniaturized package for current rating from 20A to 125A
  • 100% interconnection reliability with single piece of metal functioning as fuse link and surface mount terminations
  • Low DC resistance (DCR) – Minimizes excessive power loss
  • High interrupting ratings – for excellent inrush current capability
  • High power surface mount fuses up to 200A current ratings are in developing
  • Automotive grade with AEC-Q200 qualification are available
  • Higher current ratings from 150A and 200A are available per request

CMF High Power Fuse Applications:

  • Drones
  • Power tools
  • Energy storage
  • Power distribution units, UPS/Routers
  • Data, server and cloud systems
  • EV, BMS and battery
  • E-Bike
REQUEST
INFORMATION

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
CM2840H150AT CM2840H Series High Current 2840 150A 75VDC 1,500A @ 75VDC 600 600 Active Tape & Reel Y Check
CM2840H200AT CM2840H Series High Current 2840 200A 75VDC 1,500A @ 75VDC 600 600 Active Tape & Reel Y Check
CM2822H100AT CM2822H Series High Current 2822 100A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H125AT CM2822H Series High Current 2822 125A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H20A0T CM2822H Series High Current 2822 20A 125VDC 300A @ 125VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H30A0T CM2822H Series High Current 2822 30A 125VDC 300A @ 125VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H40A0T CM2822H Series High Current 2822 40A 125VDC 300A @ 125VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H50A0T CM2822H Series High Current 2822 50A 125VDC 300A @ 125VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H60A0T CM2822H Series High Current 2822 60A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H70A0T CM2822H Series High Current 2822 70A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H80A0T CM2822H Series High Current 2822 80A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
CM2822H90A0T CM2822H Series High Current 2822 90A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y Check
