Home » Products » SolidMatrix® SMD Chip Fuse » SolidMatrix® 1206 High Current Rating Fast Acting Surface Mount Fuses (HB Series)
Series: SolidMatrix® SMD Chip Fuses

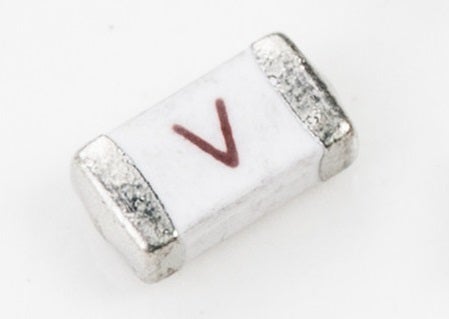

SolidMatrix® HB Series

Features

  • Special products for high current rating applications
  • Higher current ratings and excellent inrush current withstanding capability (high I2t)
  • Glass ceramic monolithic structure
  • Silver fusing element and silver termination with nickel and tin plating
  • Superior arc suppression capability
  • Symmetrical design with marking on both sides (optional)
  • Operating temperature range: -55°C to 125°C (with derating)
  • Size: 1206

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
F1206HB10V024T SolidMatrix® HB Series High Current 1206 10.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB10V024TM SolidMatrix® HB Series High Current 1206 10.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB12V024T SolidMatrix® HB Series High Current 1206 12.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB12V024TM SolidMatrix® HB Series High Current 1206 12.0A 24VDC 150A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB15V024TM SolidMatrix® HB Series High Current 1206 15.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB15V024T SolidMatrix® HB Series High Current 1206 15.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB20V024T SolidMatrix® HB Series High Current 1206 20.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB20V024TM SolidMatrix® HB Series High Current 1206 20.0A 24VDC 200A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB25V024T SolidMatrix® HB Series High Current 1206 25.0A 24VDC 250A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB25V024TM SolidMatrix® HB Series High Current 1206 25.0A 24VDC 250A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB30V024T SolidMatrix® HB Series High Current 1206 30.0A 24VDC 300A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HB30V024TM SolidMatrix® HB Series High Current 1206 30.0A 24VDC 300A at rated voltage 3000 3000 Active Tape and Reel Y Check
