Series: Multilayer Varistors

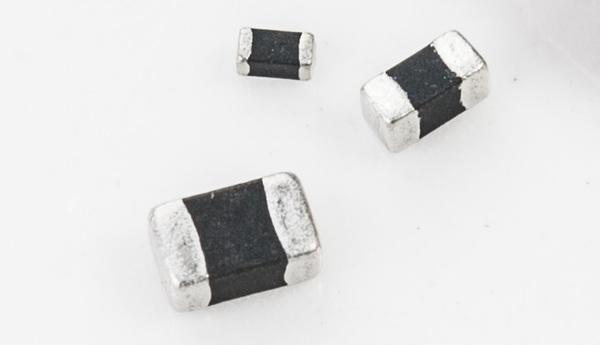

MLV ES Series

Features:

  • Fast Response < 0.5 ns
  • Low Working Voltage 5 V
  • Low Capacitance
  • Low Leakage Current < 1 μA
  • Low Clamping Voltage

Applications:

  • Cell Phones
  • Digital Cameras
  • PDAs
  • MP3
  • Notebooks

Related Product

MLV HA Series
MLV HSP Series

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Clamping Voltage Working Voltage (Max) Typical Capacitance Value (1 MHz) Tolerance of Cap. Reel Qty Standard Package Status Package Type RoHS Stock Check
MLV0402ES012V0010N MLV ES Series ESD Protection 0402 60 12VDC 10 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0100N MLV ES Series ESD Protection 0402 55 12VDC 100 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0022N MLV ES Series ESD Protection 0402 55 12VDC 22 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0033N MLV ES Series ESD Protection 0402 55 12VDC 33 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0005P MLV ES Series ESD Protection 0402 80 12VDC 5 C (pF) 5~9 pF 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0056N MLV ES Series ESD Protection 0402 55 12VDC 56 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES024V00R8P MLV ES Series ESD Protection 0402 200 24VDC 0.8 C (pF) 0.8~1.5 pF 10000 10000 Active Tape and Reel Y Check
MLV0402ES024V02R5P MLV ES Series ESD Protection 0402 198 24VDC 2.5 C (pF) 2~4 pF 10000 10000 Active Tape and Reel Y Check
MLV0402ES024V0003N MLV ES Series ESD Protection 0402 120 24VDC 3 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0010N MLV ES Series ESD Protection 0402 55V 5.5VDC 10 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0100N MLV ES Series ESD Protection 0402 55 5.5VDC 100 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0022N MLV ES Series ESD Protection 0402 55 5.5VDC 22 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0033N MLV ES Series ESD Protection 0402 55 5.5VDC 33 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0005P MLV ES Series ESD Protection 0402 76 5.5VDC 5 C (pF) 5~9 pF 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0056N MLV ES Series ESD Protection 0402 55 5.5VDC 56 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0603ES012V0010N MLV ES Series ESD Protection 0603 60 12VDC 10 C (pF) ± 30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0100N MLV ES Series ESD Protection 0603 55 12VDC 100 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0022N MLV ES Series ESD Protection 0603 55 12VDC 22 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0033N MLV ES Series ESD Protection 0603 55 12VDC 33 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0005P MLV ES Series ESD Protection 0603 80 12VDC 5 C (pF) 5~9 pF 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0056N MLV ES Series ESD Protection 0603 55 12VDC 56 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES024V00R8P MLV ES Series ESD Protection 0603 200 24VDC 0.8 C (pF) 0.8~1.5 pF 4000 4000 Active Tape and Reel Y Check
MLV0603ES024V02R5P MLV ES Series ESD Protection 0603 198 24VDC 2.5 C (pF) 2~4 pF 4000 4000 Active Tape and Reel Y Check
MLV0603ES024V0003N MLV ES Series ESD Protection 0603 120 24VDC 3 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0010N MLV ES Series ESD Protection 0603 60 5.5VDC 10 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0100N MLV ES Series ESD Protection 0603 55 5.5VDC 100 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0022N MLV ES Series ESD Protection 0603 55 5.5VDC 22 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0033N MLV ES Series ESD Protection 0603 55 5.5VDC 33 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0005P MLV ES Series ESD Protection 0603 76 5.5VDC 5 C (pF) 5~9 pF 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0056N MLV ES Series ESD Protection 0603 55 5.5VDC 56 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0805ES005V0100N MLV ES Series ESD Protection 0805 50 5.5VDC 100C (pF) ± 30 4000 4000 Active Tape and Reel Y Check
MLV0805ES005V0056N MLV ES Series ESD Protection 0805 50 5.5VDC 56 C (pF) ± 30 4000 4000 Active Tape and Reel Y Check
