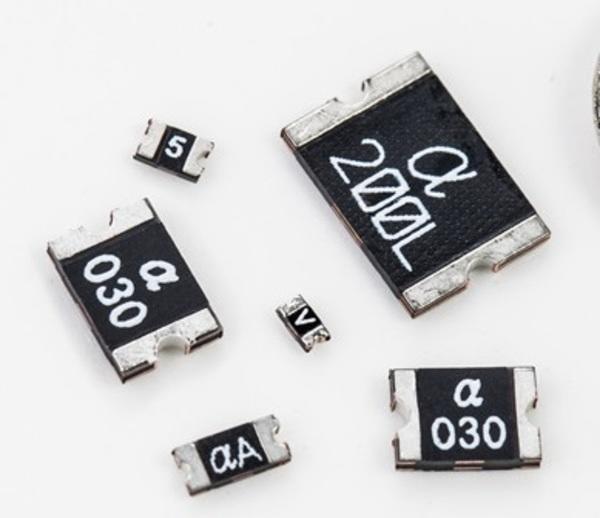

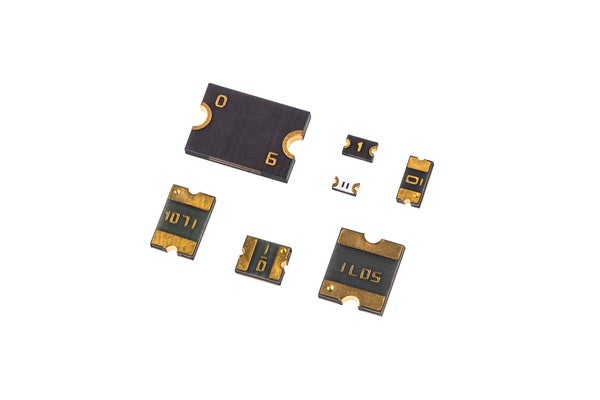

PPTC PBS Series

Features:

Resettable over-current protection
Small size of 0603
Fast time-to-trip
RoHS compliant
Halogen free
Sizes: 0603, 0805, 1206, 1210, 1812, 2018, and 2920

Applications:

Battery packs
Portable electronic devices
Industrial controls
Multimedia
Game machines
Telecom & broadband instruments

Electrical Characteristics

Supplier Part Number	Part Series	Size	Current Rating	Voltage Rating	Reel Qty	Standard Package	Status	Package Type	RoHS	Stock Check
PBS0603-010F	PPTC PBS Series	0603	0.10A	15VDC	5000	5000	Active	Tape and Reel	Y	Check
PBS0603-020F	PPTC PBS Series	0603	0.20A	9VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS0603-025F	PPTC PBS Series	0603	0.25A	6VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS0603-035F	PPTC PBS Series	0603	0.35A	6VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS0603-050F	PPTC PBS Series	0603	0.50A	6VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS0805-010-24F	PPTC PBS Series	0805	0.10A	24VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS0805-010F	PPTC PBS Series	0805	0.10A	15VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS0805-020F	PPTC PBS Series	0805	0.20A	9VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS0805-035F	PPTC PBS Series	0805	0.35A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS0805-050F	PPTC PBS Series	0805	0.50A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS0805-075F	PPTC PBS Series	0805	0.75A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS0805-110F	PPTC PBS Series	0805	1.10A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-012	PPTC PBS Series	1206	0.12A	30VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-016	PPTC PBS Series	1206	0.16A	30VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-020	PPTC PBS Series	1206	0.20A	24VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-020-30F	PPTC PBS Series	1206	0.20A	30VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-025F	PPTC PBS Series	1206	0.25A	16VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-035	PPTC PBS Series	1206	0.35A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-035-16F	PPTC PBS Series	1206	0.35A	16VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-050	PPTC PBS Series	1206	0.50A	13.2VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-075	PPTC PBS Series	1206	0.75A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-110	PPTC PBS Series	1206	1.10A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-150	PPTC PBS Series	1206	1.50A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1206-200	PPTC PBS Series	1206	2.00A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1210-005	PPTC PBS Series	1210	0.05A	30VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1210-010	PPTC PBS Series	1210	0.10A	30VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1210-020	PPTC PBS Series	1210	0.20A	30VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1210-035	PPTC PBS Series	1210	0.35A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1210-050	PPTC PBS Series	1210	0.50A	13.2VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1210-075	PPTC PBS Series	1210	0.75A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1210-110	PPTC PBS Series	1210	1.10A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1210-150	PPTC PBS Series	1210	1.50A	6VDC	3000	3000	Active	Tape and Reel	Y	Check
PBS1812-010	PPTC PBS Series	1812	0.10A	60VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-014	PPTC PBS Series	1812	0.14A	60VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-020	PPTC PBS Series	1812	0.20A	30VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-020-60	PPTC PBS Series	1812	0.20A	60VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-030	PPTC PBS Series	1812	0.30A	30VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-050-40F	PPTC PBS Series	1812	0.50A	40VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-050	PPTC PBS Series	1812	0.50A	15VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-050-30F	PPTC PBS Series	1812	0.50A	30VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-075-33F	PPTC PBS Series	1812	0.75A	33VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-075	PPTC PBS Series	1812	0.75A	13.2VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-075-24	PPTC PBS Series	1812	0.75A	24VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-110	PPTC PBS Series	1812	1.10A	6VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-110-16	PPTC PBS Series	1812	1.10A	16VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-110-24F	PPTC PBS Series	1812	1.10A	24VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-150-12	PPTC PBS Series	1812	1.50A	12VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-150-24F	PPTC PBS Series	1812	1.50A	24VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-150	PPTC PBS Series	1812	1.50A	6VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-200	PPTC PBS Series	1812	2.00A	8VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-250-16F	PPTC PBS Series	1812	2.50A	16VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-260-16F	PPTC PBS Series	1812	2.60A	16VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS1812-260	PPTC PBS Series	1812	2.60A	6VDC	2000	2000	Active	Tape and Reel	Y	Check
PBS1812-300F	PPTC PBS Series	1812	3.00A	6VDC	1500	1500	Active	Tape and Reel	Y	Check
PBS2018-050	PPTC PBS Series	2018	0.55A	60VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2018-100-33F	PPTC PBS Series	2018	1.10A	33VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2018-200	PPTC PBS Series	2018	2.00A	10VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-075F	PPTC PBS Series	2920	0.75A	30VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-110F	PPTC PBS Series	2920	1.10A	33VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-125-33F	PPTC PBS Series	2920	1.25A	33VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-125F	PPTC PBS Series	2920	1.25A	15VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-150-33F	PPTC PBS Series	2920	1.50A	33VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-150F	PPTC PBS Series	2920	1.50A	15VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-185-24F	PPTC PBS Series	2920	1.85A	24VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-185F	PPTC PBS Series	2920	1.85A	15VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-185-33F	PPTC PBS Series	2920	1.85A	33VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-200F	PPTC PBS Series	2920	2.00A	15VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-200-24F	PPTC PBS Series	2920	2.00A	24VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-260-06F	PPTC PBS Series	2920	2.60A	6VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-260-16F	PPTC PBS Series	2920	2.60A	16VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-260F	PPTC PBS Series	2920	2.60A	24VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-300-16F	PPTC PBS Series	2920	3.00A	16VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-300F	PPTC PBS Series	2920	3.00A	6VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-300-24F	PPTC PBS Series	2920	3.00A	24VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-330F	PPTC PBS Series	2920	3.30A	6VDC	6000	6000	Active	Tape and Reel	Y	Check
PBS2920-330-16F	PPTC PBS Series	2920	3.30A	16VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-330-12F	PPTC PBS Series	2920	3.30A	12VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-330-24F	PPTC PBS Series	2920	3.30A	24VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-400-16F	PPTC PBS Series	2920	4.00A	16VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-500-16F	PPTC PBS Series	2920	5.00A	16VDC	4000	4000	Active	Tape and Reel	Y	Check
PBS2920-600-12F	PPTC PBS Series	2920	6.00A	12VDC	4000	4000	Active	Tape and Reel	Y	Check
