Series: SolidMatrix® SMD Chip Fuses

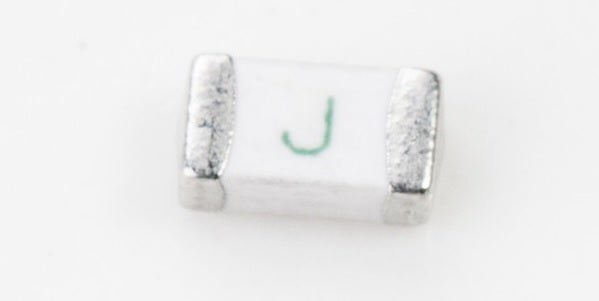

SolidMatrix® HI Series

Features

  • High inrush current withstanding capability
  • Ceramic Monolithic structure
  • Silver fusing element and silver termination with nickel and tin plating
  • Symmetrical design with marking on both sides (optional)
  • Operating temperature range: -55°C to +125°C (with derating)
  • Sizes: 0603 and 1206

Related Product

SolidMatrix® HC Series
SolidMatrix® HB Series
SolidMatrix® SB Series
SolidMatrix® VH Series

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
F0603HI1000V032TM SolidMatrix® HI Series High Inrush 0603 1.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI1500V032TM SolidMatrix® HI Series High Inrush 0603 1.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI2000V032TM SolidMatrix® HI Series High Inrush 0603 2.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI2500V032TM SolidMatrix® HI Series High Inrush 0603 2.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI3000V032TM SolidMatrix® HI Series High Inrush 0603 3.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI3500V032TM SolidMatrix® HI Series High Inrush 0603 3.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI4000V032TM SolidMatrix® HI Series High Inrush 0603 4.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI4500V032TM SolidMatrix® HI Series High Inrush 0603 4.50A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI5000V032TM SolidMatrix® HI Series High Inrush 0603 5.00A 32VDC 50A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI6000V032TM SolidMatrix® HI Series High Inrush 0603 6.00A 32VDC 70A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI7000V032TM SolidMatrix® HI Series High Inrush 0603 7.00A 32VDC 80A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603HI8000V032TM SolidMatrix® HI Series High Inrush 0603 8.00A 32VDC 80A at rated voltage 4000 4000 Active Tape and Reel Y Check
F1206HI0500V065TM SolidMatrix® HI Series High Inrush 1206 0.50A 65VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI0750V065TM SolidMatrix® HI Series High Inrush 1206 0.75A 65VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI1000V063TM SolidMatrix® HI Series High Inrush 1206 1.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI1500V063TM SolidMatrix® HI Series High Inrush 1206 1.50A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI2000V063TM SolidMatrix® HI Series High Inrush 1206 2.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI2500V032TM SolidMatrix® HI Series High Inrush 1206 2.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI3000V032TM SolidMatrix® HI Series High Inrush 1206 3.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI3500V032TM SolidMatrix® HI Series High Inrush 1206 3.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI4000V032TM SolidMatrix® HI Series High Inrush 1206 4.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI4500V032TM SolidMatrix® HI Series High Inrush 1206 4.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI5000V032TM SolidMatrix® HI Series High Inrush 1206 5.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI6000V024TM SolidMatrix® HI Series High Inrush 1206 6.00A 24VDC 80A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI7000V024TM SolidMatrix® HI Series High Inrush 1206 7.00A 24VDC 80A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206HI8000V024TM SolidMatrix® HI Series High Inrush 1206 8.00A 24VDC 80A at rated voltage 3000 3000 Active Tape and Reel Y Check
