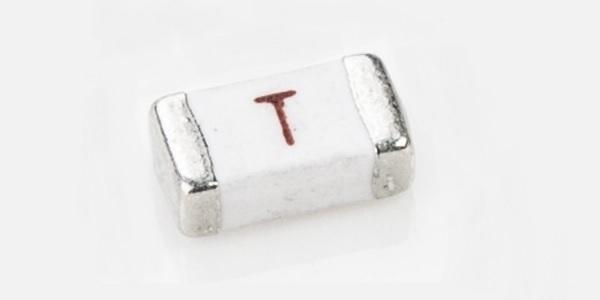

SolidMatrix® SB Series

Features

High inrush current withstanding capability
Multilayer monolithic structure with glass ceramic body and silver fusing element
Silver termination with nickel and pure-tin solder plating, providing excellent solderability
Compatible with both wave and reflow soldering processes
Operating temperature range: -55°C to +125°C (with derating)
Sizes: 0603 and 1206

Electrical Characteristics

Supplier Part Number	Part Series	Fuse Type	Size	Current Rating	Voltage Rating	Interrupting Rating	Reel Qty	Standard Package	Status	Package Type	RoHS	Stock Check
F0603SB1000V032TM	SolidMatrix® SB Series	Slow Blow	0603	1.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB1500V032TM	SolidMatrix® SB Series	Slow Blow	0603	1.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB2000V032TM	SolidMatrix® SB Series	Slow Blow	0603	2.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB2500V032TM	SolidMatrix® SB Series	Slow Blow	0603	2.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB3000V032TM	SolidMatrix® SB Series	Slow Blow	0603	3.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB3500V032TM	SolidMatrix® SB Series	Slow Blow	0603	3.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB4000V032TM	SolidMatrix® SB Series	Slow Blow	0603	4.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB4500V032TM	SolidMatrix® SB Series	Slow Blow	0603	4.50A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB5000V032TM	SolidMatrix® SB Series	Slow Blow	0603	5.00A	32VDC	50A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB6000V032TM	SolidMatrix® SB Series	Slow Blow	0603	6.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB7000V032TM	SolidMatrix® SB Series	Slow Blow	0603	7.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F0603SB8000V032TM	SolidMatrix® SB Series	Slow Blow	0603	8.00A	32VDC	80A at rated voltage	4000	4000	Active	Tape and Reel	Y	Check
F1206SB1000V063TM	SolidMatrix® SB Series	Slow Blow	1206	1.00A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB1250V063TM	SolidMatrix® SB Series	Slow Blow	1206	1.25A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB1500V063TM	SolidMatrix® SB Series	Slow Blow	1206	1.50A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB2000V063TM	SolidMatrix® SB Series	Slow Blow	1206	2.00A	63VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB2500V032TM	SolidMatrix® SB Series	Slow Blow	1206	2.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB3000V032TM	SolidMatrix® SB Series	Slow Blow	1206	3.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB3500V032TM	SolidMatrix® SB Series	Slow Blow	1206	3.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB4000V032TM	SolidMatrix® SB Series	Slow Blow	1206	4.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB4500V032TM	SolidMatrix® SB Series	Slow Blow	1206	4.50A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB5000V032TM	SolidMatrix® SB Series	Slow Blow	1206	5.00A	32VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB5500V024TM	SolidMatrix® SB Series	Slow Blow	1206	5.50A	24VDC	50A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB6000V024TM	SolidMatrix® SB Series	Slow Blow	1206	6.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB7000V024TM	SolidMatrix® SB Series	Slow Blow	1206	7.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
F1206SB8000V024TM	SolidMatrix® SB Series	Slow Blow	1206	8.00A	24VDC	60A at rated voltage	3000	3000	Active	Tape and Reel	Y	Check
