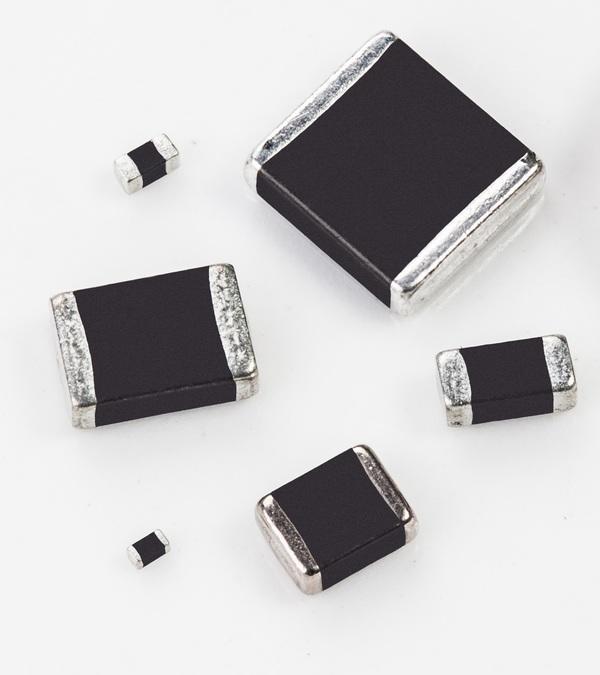

MLV NA Series

Features

Fast Response < 0.5 ns
Low Capacitance
Low Clamping Voltage and High Energy Absorption

Electrical Characteristics

Supplier Part Number	Part Series	Fuse Type	Size	Clamping Voltage	Working Voltage (Max)	Typical Capacitance 1 KHz (pF)	Reel Qty	Standard Package	Status	Package Type	RoHS	Stock Check
MLV0402NA014V0020	MLV NA Series	Normal Surge Protection	0402	35	11VAC14VDC	50	10000	10000	Active	Tape and Reel	Y	Check
MLV0402NA018V0020	MLV NA Series	Normal Surge Protection	0402	44	14VAC18VDC	45	10000	10000	Active	Tape and Reel	Y	Check
MLV0402NA006V0020	MLV NA Series	Normal Surge Protection	0402	20	4VAC5.5VDC	200	10000	10000	Active	Tape and Reel	Y	Check
MLV0402NA009V0020	MLV NA Series	Normal Surge Protection	0402	24	6VAC9VDC	135	10000	10000	Active	Tape and Reel	Y	Check
MLV0402NA011V0020	MLV NA Series	Normal Surge Protection	0402	24	6VAC9VDC	135	10000	10000	Active	Tape and Reel	Y	Check
MLV0603NA014V0030	MLV NA Series	Normal Surge Protection	0603	30	11VAC14VDC	210	4000	4000	Active	Tape and Reel	Y	Check
MLV0603NA018V0030	MLV NA Series	Normal Surge Protection	0603	39	14VAC18VDC	160	4000	4000	Active	Tape and Reel	Y	Check
MLV0603NA022V0030	MLV NA Series	Normal Surge Protection	0603	44	17VAC22VDC	145	4000	4000	Active	Tape and Reel	Y	Check
MLV0603NA030V0030	MLV NA Series	Normal Surge Protection	0603	65	25VAC30VDC	110	4000	4000	Active	Tape and Reel	Y	Check
MLV0603NA038V0030	MLV NA Series	Normal Surge Protection	0603	77	30VAC38VDC	90	4000	4000	Active	Tape and Reel	Y	Check
MLV0603NA006V0030	MLV NA Series	Normal Surge Protection	0603	20	4VAC5.5VDC	650	4000	4000	Active	Tape and Reel	Y	Check
MLV0603NA009V0030	MLV NA Series	Normal Surge Protection	0603	24	6VAC9VDC	300	4000	4000	Active	Tape and Reel	Y	Check
MLV0805NA018V0100	MLV NA Series	Normal Surge Protection	0805	39	14VAC18VDC	300	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA038V0100	MLV NA Series	Normal Surge Protection	0805	77	30VAC38VDC	150	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA014V0100	MLV NA Series	Normal Surge Protection	0805	30	11VAC14VDC	350	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA022V0100	MLV NA Series	Normal Surge Protection	0805	44	17VAC22VDC	250	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA026V0100	MLV NA Series	Normal Surge Protection	0805	54	20VAC26VDC	220	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA030V0100	MLV NA Series	Normal Surge Protection	0805	65	25VAC30VDC	200	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA045V0080	MLV NA Series	Normal Surge Protection	0805	90	35VAC45VDC	110	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA006V0080	MLV NA Series	Normal Surge Protection	0805	20	4VAC5.5VDC	1400	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA009V0080	MLV NA Series	Normal Surge Protection	0805	24	6VAC9VDC	650	3000	3000	Active	Tape and Reel	Y	Check
MLV0805NA011V0100	MLV NA Series	Normal Surge Protection	0805	24	6VAC9VDC	650	3000	3000	Active	Tape and Reel	Y	Check
MLV1210NA018V0250	MLV NA Series	Normal Surge Protection	1210	39	14VAC18VDC	1150	2000	2000	Active	Tape and Reel	Y	Check
MLV1812NA045V0500	MLV NA Series	Normal Surge Protection	1812	90	35VAC45VDC	1000	1000	1000	Active	Tape and Reel	Y	Check
