Home » Products » SolidMatrix® SMD Chip Fuse » SolidMatrix® HC Series
Series: SolidMatrix® SMD Chip Fuses

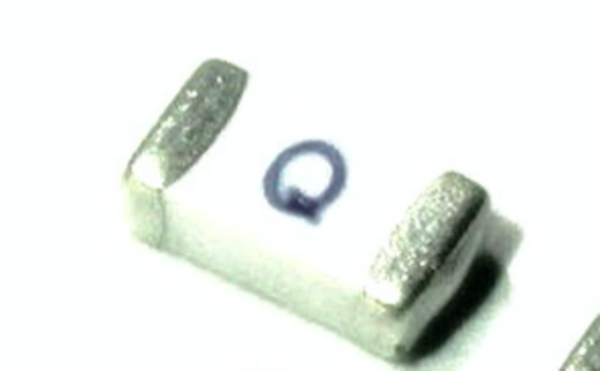

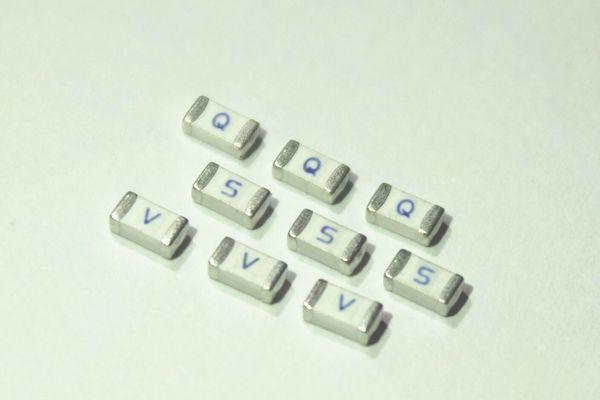

SolidMatrix® HC Series

Features:

  • High inrush current withstanding capability at high voltage
  • Glass ceramic monolithic structure
  • Sliver fusing element and silver termination with nickel and tin plating
  • Superior arc suppression capability
  • RoHS compliant and lead free materials
  • Operating temperature range: -55°C to 125°C (with de-rating)

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
F1206HC10A0TM SolidMatrix® HC Series High Current 1206 10A 35VDC 150A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC12A0TM SolidMatrix® HC Series High Current 1206 12A 35VDC 150A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC15A0TM SolidMatrix® HC Series High Current 1206 15A 35VDC 150A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC20A0TM SolidMatrix® HC Series High Current 1206 20A 35VDC 150A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC25A0TM SolidMatrix® HC Series High Current 1206 25A 35VDC 200A@35VDC 3000 3000 Active Tape and Reel Y Check
F1206HC30A0TM SolidMatrix® HC Series High Current 1206 30A 35VDC 200A@35VDC/300A@26VDC 3000 3000 Active Tape and Reel Y Check
F1206HC40A0TM SolidMatrix® HC Series High Current 1206 40A 35VDC 200A@35VDC/300A@26VDC 3000 3000 Active Tape and Reel Y Check
