Series: SolidMatrix® SMD Chip Fuses

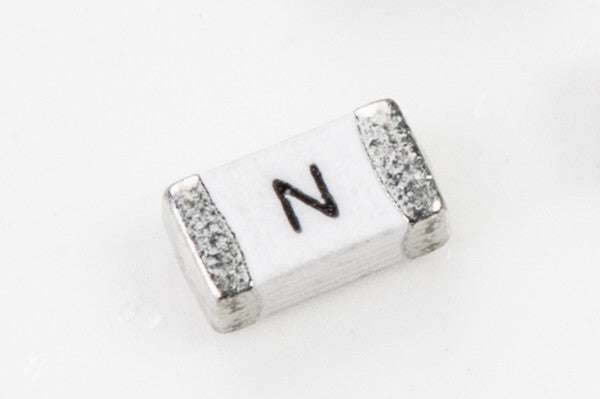

SolidMatrix® FA Series

Features:

  • Multilayer monolithic structure with glass ceramic body and silver fusing element
  • Silver termination with nickel and pure-tin solder plating, providing excellent solderability
  • Compatible with both wave and reflow soldering processes
  • Operating temperature range: -55°C to +125°C (with derating)
  • Sizes: 0402, 0603 and 1206

Electrical Characteristics

Supplier Part Number Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
F1206FA0500V063T Fast Acting 1206 0.50A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA0750V063TM Fast Acting 1206 0.75A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA0750V063T Fast Acting 1206 0.75A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1000V063T Fast Acting 1206 1.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1000V063TM Fast Acting 1206 1.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1500V063T Fast Acting 1206 1.50A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1500V063TM Fast Acting 1206 1.50A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1750V063T Fast Acting 1206 1.75A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA1750V063TM Fast Acting 1206 1.75A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA2000V063T Fast Acting 1206 2.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA2000V063TM Fast Acting 1206 2.00A 63VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA2500V032T Fast Acting 1206 2.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA2500V032TM Fast Acting 1206 2.50A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA3000V032T Fast Acting 1206 3.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA3000V032TM Fast Acting 1206 3.00A 32VDC 50A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA4000V032T Fast Acting 1206 4.00A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA4000V032TM Fast Acting 1206 4.00A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA5000V032T Fast Acting 1206 5.00A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA5000V032TM Fast Acting 1206 5.00A 32VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA6000V024T Fast Acting 1206 6.00A 24VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA6000V024TM Fast Acting 1206 6.00A 24VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA7000V024T Fast Acting 1206 7.00A 24VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA7000V024TM Fast Acting 1206 7.00A 24VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA8000V024T Fast Acting 1206 8.00A 24VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F1206FA8000V024TM Fast Acting 1206 8.00A 24VDC 45A at rated voltage 3000 3000 Active Tape and Reel Y Check
F0402FA0500V024T Fast Acting 0402 0.50A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA0750V024T Fast Acting 0402 0.75A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA1000V024T Fast Acting 0402 1.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA1500V024T Fast Acting 0402 1.50A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA2000V024T Fast Acting 0402 2.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA3000V024T Fast Acting 0402 3.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0402FA4000V024T Fast Acting 0402 4.00A 24VDC 35A at rated voltage 10000 10000 Active Tape and Reel Y Check
F0603FA0500V063T Fast Acting 0603 0.50A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA0500V063TM Fast Acting 0603 0.50A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA0750V063T Fast Acting 0603 0.75A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA0750V063TM Fast Acting 0603 0.75A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA1000V063T Fast Acting 0603 1.00A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA1000V063TM Fast Acting 0603 1.00A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA1500V063T Fast Acting 0603 1.50A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA1500V063TM Fast Acting 0603 1.50A 63VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA2000V032T Fast Acting 0603 2.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA2000V032TM Fast Acting 0603 2.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA2500V032T Fast Acting 0603 2.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA2500V032TM Fast Acting 0603 2.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA3000V032T Fast Acting 0603 3.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA3000V032TM Fast Acting 0603 3.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA3500V032T Fast Acting 0603 3.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA3500V032TM Fast Acting 0603 3.50A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA4000V032T Fast Acting 0603 4.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA4000V032TM Fast Acting 0603 4.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA5000V032T Fast Acting 0603 5.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA5000V032TM Fast Acting 0603 5.00A 32VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA6000V024T Fast Acting 0603 6.00A 24VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
F0603FA6000V024TM Fast Acting 0603 6.00A 24VDC 35A at rated voltage 4000 4000 Active Tape and Reel Y Check
