PPTC Resettable Fuses

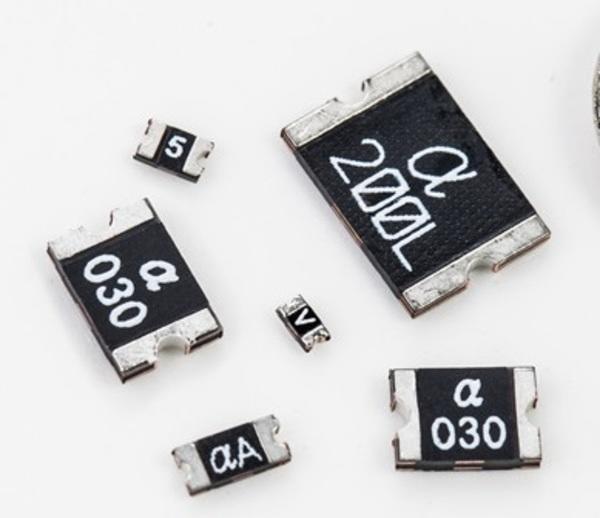

AEM is known in the electronic fuse field for excellent quality and consistent performance. Our PBS resettable fuse series comes in EIA standard SMD package sizes from 0603 to 2920. Developed and manufactured with multiple proprietary patented technologies, the PMS series is available with current ratings ranging from 0.5A to 3.75A.

Features Include:

  • Resettable over-current protection
  • Fast time-to-trip
  • RoHS compliant
  • Halogen free

Application Fields:

  • Battery packs
  • Portable electronic devices
  • Industrial controls
  • Multimedia
  • Game machines
  • Telecom & broadband instruments

Electrical Characteristics

Supplier Part Number Part Series Size Current Rating Voltage Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
PBS0603-010F PPTC PBS Series 00603 0.10A 15VDC 5000 5000 Active Tape and Reel Y Check
PBS0603-020F PPTC PBS Series 00603 0.20A 9VDC 6000 6000 Active Tape and Reel Y Check
PBS0603-025F PPTC PBS Series 00603 0.25A 6VDC 6000 6000 Active Tape and Reel Y Check
PBS0603-035F PPTC PBS Series 00603 0.35A 6VDC 6000 6000 Active Tape and Reel Y Check
PBS0603-050F PPTC PBS Series 00603 0.50A 6VDC 4000 4000 Active Tape and Reel Y Check
PBS0805-010F PPTC PBS Series 00805 0.10A 15VDC 3000 3000 Active Tape and Reel Y Check
PBS0805-020F PPTC PBS Series 00805 0.20A 9VDC 3000 3000 Active Tape and Reel Y Check
PBS0805-035F PPTC PBS Series 00805 0.35A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS0805-050F PPTC PBS Series 00805 0.50A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS0805-075F PPTC PBS Series 00805 0.75A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS0805-110F PPTC PBS Series 00805 1.10A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-012 PPTC PBS Series 1206 0.12A 30VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-016 PPTC PBS Series 1206 0.16A 30VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-020 PPTC PBS Series 1206 0.20A 24VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-020-30F PPTC PBS Series 1206 0.20A 30VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-025F PPTC PBS Series 1206 0.25A 16VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-035 PPTC PBS Series 1206 0.35A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-050 PPTC PBS Series 1206 0.50A 13.2VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-075 PPTC PBS Series 1206 0.75A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-110 PPTC PBS Series 1206 1.10A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-150 PPTC PBS Series 1206 1.50A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1206-200 PPTC PBS Series 1206 2.00A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-005 PPTC PBS Series 1210 0.05A 30VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-010 PPTC PBS Series 1210 0.10A 30VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-020 PPTC PBS Series 1210 0.20A 30VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-035 PPTC PBS Series 1210 0.35A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-050 PPTC PBS Series 1210 0.50A 13.2VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-075 PPTC PBS Series 1210 0.75A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-110 PPTC PBS Series 1210 1.10A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-150 PPTC PBS Series 1210 1.50A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1210-175F PPTC PBS Series 1210 1.75A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS1812-010 PPTC PBS Series 1812 0.10A 60VDC 1500 1500 Active Tape and Reel Y Check
PBS1812-014 PPTC PBS Series 1812 0.14A 60VDC 1500 1500 Active Tape and Reel Y Check
PBS1812-020 PPTC PBS Series 1812 0.20A 30VDC 1500 1500 Active Tape and Reel Y Check
PBS1812-020-60 PPTC PBS Series 1812 0.20A 60VDC 1500 1500 Active Tape and Reel Y Check
PBS1812-030 PPTC PBS Series 1812 0.30A 30VDC 1500 1500 Active Tape and Reel Y Check
PBS1812-050 PPTC PBS Series 1812 0.50A 15VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-050-30F PPTC PBS Series 1812 0.50A 30VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-075 PPTC PBS Series 1812 0.75A 13.2VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-075-24 PPTC PBS Series 1812 0.75A 24VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-110 PPTC PBS Series 1812 1.10A 6VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-110-16 PPTC PBS Series 1812 1.10A 16VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-110-24F PPTC PBS Series 1812 1.10A 24VDC 1500 1500 Active Tape and Reel Y Check
PBS1812-125 PPTC PBS Series 1812 1.25A 6VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-150 PPTC PBS Series 1812 1.50A 6VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-150-12 PPTC PBS Series 1812 1.50A 12VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-150-24F PPTC PBS Series 1812 1.50A 24VDC 1500 1500 Active Tape and Reel Y Check
PBS1812-160 PPTC PBS Series 1812 1.60A 8VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-200 PPTC PBS Series 1812 2.00A 6VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-250-16F PPTC PBS Series 1812 2.50A 16VDC 1500 1500 Active Tape and Reel Y Check
PBS1812-260 PPTC PBS Series 1812 2.60A 6VDC 2000 2000 Active Tape and Reel Y Check
PBS1812-300F PPTC PBS Series 1812 3.00A 6VDC 1500 1500 Active Tape and Reel Y Check
PBS2018-050 PPTC PBS Series 2018 0.50A 60VDC 6000 6000 Active Tape and Reel Y Check
PBS2018-100-33F PPTC PBS Series 2018 1.00A 33VDC 6000 6000 Active Tape and Reel Y Check
PBS2018-150 PPTC PBS Series 2018 1.50A 15VDC 6000 6000 Active Tape and Reel Y Check
PBS2018-260-24F PPTC PBS Series 2018 2.60A 24VDC 4000 4000 Active Tape and Reel Y Check
PBS2920-185-33F PPTC PBS Series 2920 1.85A 33VDC 3000 3000 Active Tape and Reel Y Check
PBS2920-260F PPTC PBS Series 2920 2.60A 24VDC 3000 3000 Active Tape and Reel Y Check
PBS2920-300F PPTC PBS Series 2920 3.00A 6VDC 3000 3000 Active Tape and Reel Y Check
PBS2920-300-24F PPTC PBS Series 2920 3.00A 24VDC 3000 3000 Active Tape and Reel Y Check

Part Series

PPTC PBS Series
