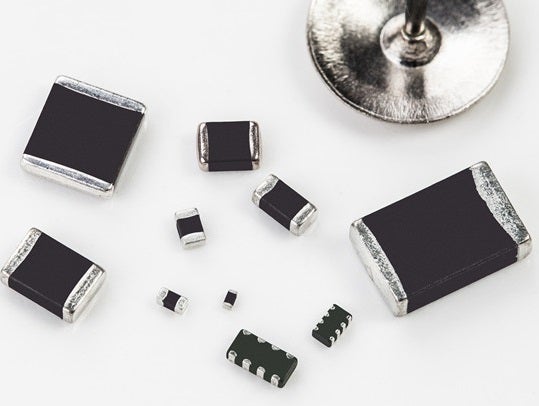

Multilayer Varistors

The MLV series is available in low energy ESD protection to high energy voltage surge protection from 0201 to 2220 EIA standard package sizes. Also available is the new MVF series a 4 channel ESD-EMI array featuring a "P" type LC filter with combined ESD suppression in a 0508 case size.

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Clamping Voltage Working Voltage (Max) Typical Capacitance Value (1 MHz) Typical Capacitance 1 KHz (pF) Tolerance of Cap. Reel Qty Standard Package Status Package Type RoHS Stock Check
MLV0402ES005V0005P MLV ES Series ESD Protection 0402 76 5.5VDC 5 C (pF) 5~9 pF 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0010N MLV ES Series ESD Protection 0402 60 5.5VDC 10 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0022N MLV ES Series ESD Protection 0402 55 5.5VDC 22 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0033N MLV ES Series ESD Protection 0402 55 5.5VDC 33 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0056N MLV ES Series ESD Protection 0402 55 5.5VDC 56 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES005V0100N MLV ES Series ESD Protection 0402 55 5.5VDC 100 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0005P MLV ES Series ESD Protection 0402 80 12VDC 5 C (pF) 5~9 pF 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0010N MLV ES Series ESD Protection 0402 60 12VDC 10 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0022N MLV ES Series ESD Protection 0402 55 12VDC 22 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0033N MLV ES Series ESD Protection 0402 55 12VDC 33 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0056N MLV ES Series ESD Protection 0402 55 12VDC 56 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES012V0100N MLV ES Series ESD Protection 0402 55 12VDC 100 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES024V0003N MLV ES Series ESD Protection 0402 120 24VDC 3 C (pF) ±30 10000 10000 Active Tape and Reel Y Check
MLV0402ES024V00R8P MLV ES Series ESD Protection 0402 200 24VDC 0.8 C (pF) 0.8~1.5 pF 10000 10000 Active Tape and Reel Y Check
MLV0402ES024V02R5P MLV ES Series ESD Protection 0402 198 24VDC 2.5 C (pF) 2~4 pF 10000 10000 Active Tape and Reel Y Check
MLV0603ES005V0005P MLV ES Series ESD Protection 0603 76 5.5VDC 5 C (pF) 5~9 pF 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0010N MLV ES Series ESD Protection 0603 60 5.5VDC 10 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0022N MLV ES Series ESD Protection 0603 55 5.5VDC 22 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0033N MLV ES Series ESD Protection 0603 55 5.5VDC 33 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0056N MLV ES Series ESD Protection 0603 55 5.5VDC 56 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES005V0100N MLV ES Series ESD Protection 0603 55 5.5VDC 100 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0005P MLV ES Series ESD Protection 0603 80 12VDC 5 C (pF) 5~9 pF 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0010N MLV ES Series ESD Protection 0603 60 12VDC 10 C (pF) ± 30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0022N MLV ES Series ESD Protection 0603 55 12VDC 22 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0033N MLV ES Series ESD Protection 0603 55 12VDC 33 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0056N MLV ES Series ESD Protection 0603 55 12VDC 56 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES012V0100N MLV ES Series ESD Protection 0603 55 12VDC 100 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES024V0003N MLV ES Series ESD Protection 0603 120 24VDC 3 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0603ES024V00R8P MLV ES Series ESD Protection 0603 200 24VDC 0.8 C (pF) 0.8~1.5 pF 4000 4000 Active Tape and Reel Y Check
MLV0603ES024V02R5P MLV ES Series ESD Protection 0603 198 24VDC 2.5 C (pF) 2~4 pF 4000 4000 Active Tape and Reel Y Check
MLV0805ES005V0056N MLV ES Series ESD Protection 0805 50 5.5VDC 56 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
MLV0805ES005V0100N MLV ES Series ESD Protection 0805 50 5.5VDC 100 C (pF) ±30 4000 4000 Active Tape and Reel Y Check
HSP1210SV390V0200 MLV HSP Series High Surge Protection 1210 647 320VDC 2000 Tape and Reel Active Tape and Reel Y Check
HSP1812SV470V0500 MLV HSP Series High Surge Protection 1812 775 385VDC 500 Tape and Reel Active Tape and Reel Y Check
HSP2220SV390V0500 MLV HSP Series High Surge Protection 2220 647 320VDC 500 Tape and Reel Active Tape and Reel Y Check
HSP2220SV390V0800 MLV HSP Series High Surge Protection 2220 647 320VDC 500 Tape and Reel Active Tape and Reel Y Check
HSP2220SV430V0500 MLV HSP Series High Surge Protection 2220 705 350VDC 500 Tape and Reel Active Tape and Reel Y Check
HSP2220SV430V0800 MLV HSP Series High Surge Protection 2220 705 350VDC 500 Tape and Reel Active Tape and Reel Y Check
HSP2220SV470V0500 MLV HSP Series High Surge Protection 2220 775 385VDC 500 Tape and Reel Active Tape and Reel Y Check
HSP2220SV470V0800 MLV HSP Series High Surge Protection 2220 775 385VDC 500 Tape and Reel Active Tape and Reel Y Check
HSP3220SV430V0800 MLV HSP Series High Surge Protection 2220 705 350VDC 1000 Tape and Reel Active Tape and Reel Y Check
HSP3220SV470V0800 MLV HSP Series High Surge Protection 2220 775 385VDC 1000 Tape and Reel Active Tape and Reel Y Check
MLV1206HA014V0200 MLV HA Series High Surge Protection 1206 30 14VDC 1.2 C (pF) 1200 3000 3000 Active Tape and Reel Y Check
MLV1206HA018V0200 MLV HA Series High Surge Protection 1206 39 18VDC 0.78 C (pF) 780 3000 3000 Active Tape and Reel Y Check
MLV1206HA022V0200 MLV HA Series High Surge Protection 1206 44 22VDC 0.75 C (pF) 750 3000 3000 Active Tape and Reel Y Check
MLV1206HA026V0200 MLV HA Series High Surge Protection 1206 54 26VDC 0.7 C (pF) 700 3000 3000 Active Tape and Reel Y Check
MLV1206HA030V0200 MLV HA Series High Surge Protection 1206 65 30VDC 0.51 C (pF) 510 3000 3000 Active Tape and Reel Y Check
MLV1206HA038V0200 MLV HA Series High Surge Protection 1206 77 38VDC 0.44 C (pF) 440 3000 3000 Active Tape and Reel Y Check
MLV1210HA014V0400 MLV HA Series High Surge Protection 1210 30 14VDC 2 C (pF) 2000 2000 2000 Active Tape and Reel Y Check
MLV1210HA018V0400 MLV HA Series High Surge Protection 1210 39 18VDC 1.6 C (pF) 1600 2000 2000 Active Tape and Reel Y Check
MLV1210HA022V0400 MLV HA Series High Surge Protection 1210 44 22VDC 1.5 C (pF) 1500 2000 2000 Active Tape and Reel Y Check
MLV1210HA026V0400 MLV HA Series High Surge Protection 1210 54 26VDC 0.88 C (pF) 880 2000 2000 Active Tape and Reel Y Check
MLV1210HA030V0400 MLV HA Series High Surge Protection 1210 65 30VDC 0.8 C (pF) 800 2000 2000 Active Tape and Reel Y Check
MLV1210HA038V0400 MLV HA Series High Surge Protection 1210 77 38VDC 0.53 C (pF) 530 2000 2000 Active Tape and Reel Y Check
MLV1812HA018V0800 MLV HA Series High Surge Protection 1812 38 18VDC 3.5 C (pF) 3500 1000 1000 Active Tape and Reel Y Check
MLV1812HA030V0800 MLV HA Series High Surge Protection 1812 65 30VDC 2.35 C (pF) 2350 1000 1000 Active Tape and Reel Y Check
MLV1812HA038V0800 MLV HA Series High Surge Protection 1812 77 38VDC 1.6 C (pF) 1600 1000 1000 Active Tape and Reel Y Check
MLV1812HA045V0800 MLV HA Series High Surge Protection 1812 90 45VDC 1.2 C (pF) 1200 1000 1000 Active Tape and Reel Y Check
MLV2220HA014V1200 MLV HA Series High Surge Protection 2220 30 14VDC 10.5 C (pF) 10500 1000 1000 Active Tape and Reel Y Check
MLV2220HA018V1200 MLV HA Series High Surge Protection 2220 39 18VDC 8.5 C (pF) 8500 1000 1000 Active Tape and Reel Y Check
MLV2220HA022V1200 MLV HA Series High Surge Protection 2220 44 22VDC 8.3 C (pF) 8300 1000 1000 Active Tape and Reel Y Check
MLV2220HA030V1200 MLV HA Series High Surge Protection 2220 65 30VDC 6 C (pF) 6000 1000 1000 Active Tape and Reel Y Check
MLV2220HA038V1200 MLV HA Series High Surge Protection 2220 77 38VDC 4 C (pF) 4000 1000 1000 Active Tape and Reel Y Check
MLV2220HA045V1200 MLV HA Series High Surge Protection 2220 90 45VDC 3.5 C (pF) 3500 1000 1000 Active Tape and Reel Y Check
MLV0402NA006V0020 MLV NA Series Normal Surge Protection 0402 20 5.5VDC 0.2 C (pF) 200 10000 10000 Active Tape and Reel Y Check
MLV0402NA009V0020 MLV NA Series Normal Surge Protection 0402 23 9VDC 0.135 C (pF) 135 10000 10000 Active Tape and Reel Y Check
MLV0402NA011V0020 MLV NA Series Normal Surge Protection 0402 25 11VDC 0.075 C (pF) 75 10000 10000 Active Tape and Reel Y Check
MLV0402NA014V0020 MLV NA Series Normal Surge Protection 0402 30 14VDC 0.05 C (pF) 50 10000 10000 Active Tape and Reel Y Check
MLV0402NA018V0020 MLV NA Series Normal Surge Protection 0402 39 18VDC 0.045 C (pF) 45 10000 10000 Active Tape and Reel Y Check
MLV0603NA006V0030 MLV NA Series Normal Surge Protection 0603 20 5.5VDC 0.36 C (pF) 360 4000 4000 Active Tape and Reel Y Check
MLV0603NA009V0030 MLV NA Series Normal Surge Protection 0603 23 9VDC 0.3 C (pF) 300 4000 4000 Active Tape and Reel Y Check
MLV0603NA014V0030 MLV NA Series Normal Surge Protection 0603 30 14VDC 0.21 C (pF) 210 4000 4000 Active Tape and Reel Y Check
MLV0603NA018V0030 MLV NA Series Normal Surge Protection 0603 39 18VDC 0.16 C (pF) 160 4000 4000 Active Tape and Reel Y Check
MLV0603NA022V0030 MLV NA Series Normal Surge Protection 0603 44 22VDC 0.145 C (pF) 145 4000 4000 Active Tape and Reel Y Check
MLV0603NA030V0030 MLV NA Series Normal Surge Protection 0603 65 30VDC 0.11 C (pF) 110 4000 4000 Active Tape and Reel Y Check
MLV0603NA038V0030 MLV NA Series Normal Surge Protection 0603 77 38VDC 0.09 C (pF) 90 4000 4000 Active Tape and Reel Y Check
MLV0805NA006V0080 MLV NA Series Normal Surge Protection 0805 20 5.5VDC 1.4 C (pF) 1400 3000 3000 Active Tape and Reel Y Check
MLV0805NA009V0080 MLV NA Series Normal Surge Protection 0805 23 9VDC 0.65 C (pF) 650 3000 3000 Active Tape and Reel Y Check
MLV0805NA011V0100 MLV NA Series Normal Surge Protection 0805 25 11VDC 0.41 C (pF) 410 3000 3000 Active Tape and Reel Y Check
MLV0805NA014V0100 MLV NA Series Normal Surge Protection 0805 30 14VDC 0.35 C (pF) 350 3000 3000 Active Tape and Reel Y Check
MLV0805NA022V0100 MLV NA Series Normal Surge Protection 0805 44 22VDC 0.25 C (pF) 250 3000 3000 Active Tape and Reel Y Check
MLV0805NA026V0100 MLV NA Series Normal Surge Protection 0805 54 26VDC 0.22 C (pF) 220 3000 3000 Active Tape and Reel Y Check
MLV0805NA030V0100 MLV NA Series Normal Surge Protection 0805 65 30VDC 0.2 C (pF) 200 3000 3000 Active Tape and Reel Y Check
MLV0805NA045V0080 MLV NA Series Normal Surge Protection 0805 90 45VDC 0.11 C (pF) 110 3000 3000 Active Tape and Reel Y Check
MLV1206NA006V0100 MLV NA Series Normal Surge Protection 1206 20 5.5VDC 3.1 C (pF) 3100 3000 3000 Active Tape and Reel Y Check
MLV1206NA014V0100 MLV NA Series Normal Surge Protection 1206 30 14VDC 0.8 C (pF) 800 3000 3000 Active Tape and Reel Y Check
MLV1206NA018V0100 MLV NA Series Normal Surge Protection 1206 38 18VDC 0.62 C (pF) 620 3000 3000 Active Tape and Reel Y Check
MLV1206NA022V0100 MLV NA Series Normal Surge Protection 1206 44 22VDC 0.7 C (pF) 700 3000 3000 Active Tape and Reel Y Check
MLV1206NA026V0100 MLV NA Series Normal Surge Protection 1206 54 26VDC 0.48 C (pF) 480 3000 3000 Active Tape and Reel Y Check
MLV1206NA030V0100 MLV NA Series Normal Surge Protection 1206 65 30VDC 0.4 C (pF) 400 3000 3000 Active Tape and Reel Y Check
MLV1206NA038V0100 MLV NA Series Normal Surge Protection 1206 77 38VDC 0.26 C (pF) 260 3000 3000 Active Tape and Reel Y Check
MLV1206NA045V0100 MLV NA Series Normal Surge Protection 1206 90 45VDC 0.23 C (pF) 230 3000 3000 Active Tape and Reel Y Check
MLV1206NA056V0100 MLV NA Series Normal Surge Protection 1206 110 56VDC 0.2 C (pF) 200 3000 3000 Active Tape and Reel Y Check
MLV1206NA065V0100 MLV NA Series Normal Surge Protection 1206 135 65VDC 0.175 C (pF) 175 3000 3000 Active Tape and Reel Y Check
MLV1206NA085V0100 MLV NA Series Normal Surge Protection 1206 65 85VDC 0.15 C (pF) 150 3000 3000 Active Tape and Reel Y Check
MLV1210NA006V0250 MLV NA Series Normal Surge Protection 1210 20 5.5VDC 5.2 C (pF) 5200 2000 2000 Active Tape and Reel Y Check
MLV1210NA018V0250 MLV NA Series Normal Surge Protection 1210 38 18VDC 1.15 C (pF) 1150 2000 2000 Active Tape and Reel Y Check
MLV1210NA022V0250 MLV NA Series Normal Surge Protection 1210 44 22VDC 1.72 C (pF) 1720 2000 2000 Active Tape and Reel Y Check
MLV1210NA026V0250 MLV NA Series Normal Surge Protection 1210 54 26VDC 0.61 C (pF) 610 2000 2000 Active Tape and Reel Y Check
MLV1210NA030V0250 MLV NA Series Normal Surge Protection 1210 65 30VDC 0.92 C (pF) 920 2000 2000 Active Tape and Reel Y Check
MLV1210NA038V0250 MLV NA Series Normal Surge Protection 1210 77 38VDC 0.78 C (pF) 780 2000 2000 Active Tape and Reel Y Check
MLV1210NA045V0250 MLV NA Series Normal Surge Protection 1210 90 45VDC 0.4 C (pF) 400 2000 2000 Active Tape and Reel Y Check
MLV1210NA056V0250 MLV NA Series Normal Surge Protection 1210 110 56VDC 0.3 C (pF) 300 2000 2000 Active Tape and Reel Y Check
MLV1210NA085V0200 MLV NA Series Normal Surge Protection 1210 65 85VDC 0.21 C (pF) 210 2000 2000 Active Tape and Reel Y Check
MLV1812NA018V0500 MLV NA Series Normal Surge Protection 1812 38 18VDC 2 C (pF) 2000 1000 1000 Active Tape and Reel Y Check
MLV1812NA030V0500 MLV NA Series Normal Surge Protection 1812 65 30VDC 2.5 C (pF) 2500 1000 1000 Active Tape and Reel Y Check
MLV1812NA038V0500 MLV NA Series Normal Surge Protection 1812 77 38VDC 2.2 C (pF) 2200 1000 1000 Active Tape and Reel Y Check
MLV1812NA045V0500 MLV NA Series Normal Surge Protection 1812 90 45VDC 1 C (pF) 1000 1000 1000 Active Tape and Reel Y Check
MLV2220NA018V1000 MLV NA Series Normal Surge Protection 2220 38 18VDC 8.5 C (pF) 8500 1000 1000 Active Tape and Reel Y Check
MLV2220NA030V1000 MLV NA Series Normal Surge Protection 2220 65 30VDC 3.9 C (pF) 3900 1000 1000 Active Tape and Reel Y Check
MLV2220NA038V1000 MLV NA Series Normal Surge Protection 2220 77 38VDC 4.6 C (pF) 4600 1000 1000 Active Tape and Reel Y Check
MLV2220NA056V1000 MLV NA Series Normal Surge Protection 2220 110 56VDC 4 C (pF) 4000 1000 1000 Active Tape and Reel Y Check
