Series: High Current Surface Mount Fuse

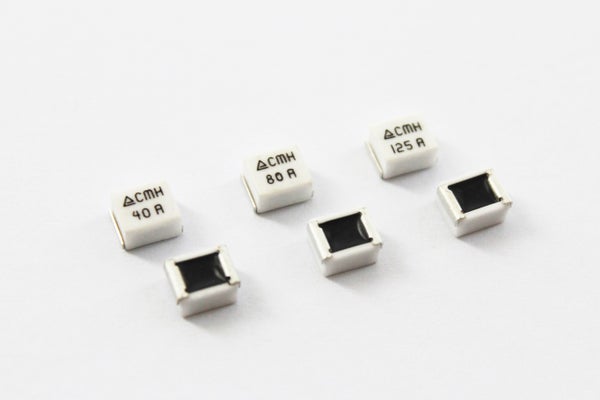

CM2822H Series

Features:

  • Small size with high interrupting ( 1000A@75Vdc)
  • Low DCR, lower power dissipation
  • Faster blow when fault condition happens
  • Higher reliability standards refer to automotive items

Related Product

Electrical Characteristics

Supplier Part Number Part Series Fuse Type Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Intro Date (MM/DD/YYYY) Stock Check
CM2822H100AT CM2822H Series High Current 2822 100A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H125AT CM2822H Series High Current 2822 125A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H20A0T CM2822H Series High Current 2822 20A 125VDC 300A @ 125VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H30A0T CM2822H Series High Current 2822 30A 125VDC 300A @ 125VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H40A0T CM2822H Series High Current 2822 40A 125VDC 300A @ 125VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H50A0T CM2822H Series High Current 2822 50A 125VDC 300A @ 125VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H60A0T CM2822H Series High Current 2822 60A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H70A0T CM2822H Series High Current 2822 70A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H80A0T CM2822H Series High Current 2822 80A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
CM2822H90A0T CM2822H Series High Current 2822 90A 75VDC 1000A @ 75VDC 1500A @ 48VDC 1000 1000 Active Tape & Reel Y 11/29/2020 Check
