Series: AirMatrix® SMD Fuses

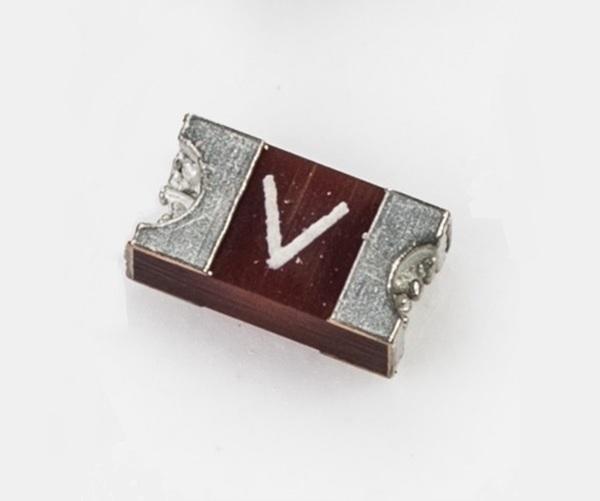

AirMatrix® AF Series

Features:

  • Fast acting at 200% overload current level
  • Excellent inrush current withstanding capability
  • Fiberglass enforced epoxy fuse body
  • Copper or copper alloy composite fuse link
  • Copper termination with nickel and tin plating
  • Halogen free, RoHS compliant and 100% lead-free
  • Operating temperature range: -55°C to +125°C (with derating)
  • Size: 1206 and 2410

Applications:

  • Low voltage lighting power
  • Power Supply, e.g. DC/DC converters, DC/AC inverters, Backlight drivers, etc.
  • Consumer Electronics, e.g. LCD TVs, PDP, DVDs, PCM , etc.
  • Communication Technology, e.g. Telecom systems, Networking, Modems, Routers, Changers, Base stations , etc.
  • Office Automation Electronics
  • IT Products, e.g. LCD monitors, Notebooks, PC servers, etc.

Related Product

AirMatrix® MF Series

Electrical Characteristics

Supplier Part Number Size Current Rating Voltage Rating Interrupting Rating Reel Qty Standard Package Status Package Type RoHS Stock Check
AF1206F1.50TM 1206 1.50A 65VDC 50A@65VDC 3500 3500 Active Tape and Reel Y Check
AF1206F1.60TM 1206 1.60A 65VDC 50A@65VDC 3500 3500 Active Tape and Reel Y Check
AF1206F10.0TM 1206 10.0A 32VDC 50A@32VDC 3500 3500 Active Tape and Reel Y Check
AF1206F12.0TM 1206 12.0A 32VDC 50A@32VDC 3500 3500 Active Tape and Reel Y Check
AF1206F15.0TM 1206 15.0A 32VDC 50A@32VDC 3500 3500 Active Tape and Reel Y Check
AF1206F2.00TM 1206 2.00A 65VDC 50A@65VDC 3500 3500 Active Tape and Reel Y Check
AF1206F2.50TM 1206 2.50A 65VDC 50A@65VDC 3500 3500 Active Tape and Reel Y Check
AF1206F3.00TM 1206 3.00A 65VDC 50A@65VDC 3500 3500 Active Tape and Reel Y Check
AF1206F3.15TM 1206 3.15A 65VDC 50A@65VDC 3500 3500 Active Tape and Reel Y Check
AF1206F3.50TM 1206 3.50A 65VDC 50A@65VDC 3500 3500 Active Tape and Reel Y Check
AF1206F4.00TM 1206 4.00A 65VDC 50A@65VDC 3500 3500 Active Tape and Reel Y Check
AF1206F5.00TM 1206 5.00A 32VDC 50A@32VDC 3500 3500 Active Tape and Reel Y Check
AF1206F6.30TM 1206 6.30A 32VDC 50A@32VDC 3500 3500 Active Tape and Reel Y Check
AF1206F7.00TM 1206 7.00A 32VDC 50A@32VDC 3500 3500 Active Tape and Reel Y Check
AF1206F8.00TM 1206 8.00A 32VDC 50A@32VDC 3500 3500 Active Tape and Reel Y Check
AF2-0.50V125TM 2410 0.50A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-0.63V125TM 2410 0.63A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-0.75V125TM 2410 0.75A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-1.00V125TM 2410 1.00A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-1.25V125TM 2410 1.25A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-1.50V125TM 2410 1.50A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-10.0V125TM 2410 10.0A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-12.0V065TM 2410 12.0A 65VDC 2000 2000 Active Tape and Reel Y Check
AF2-15.0V065TM 2410 15.0A 65VDC 2000 2000 Active Tape and Reel Y Check
AF2-2.00V125TM 2410 2.00A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-2.50V125TM 2410 2.50A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-20.0V065TM 2410 20.0A 65VDC 2000 2000 Active Tape and Reel Y Check
AF2-3.00V125TM 2410 3.00A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-3.15V125TM 2410 3.15A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-3.50V125TM 2410 3.50A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-4.00V125TM 2410 4.00A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-5.00V125TM 2410 5.00A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-6.30V125TM 2410 6.30A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-7.00V125TM 2410 7.00A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-8.00V125TM 2410 8.00A 125VDC 2000 2000 Active Tape and Reel Y Check
AF2-8.00V125TM 2410 8.00A 125VDC 2000 2000 Active Tape and Reel Y Check
